+31- Sale Price: $169,997
-
Sleeps 7
-
1 Slides
-
Bunk Over CabOutdoor Entertainment
-
32ft Long

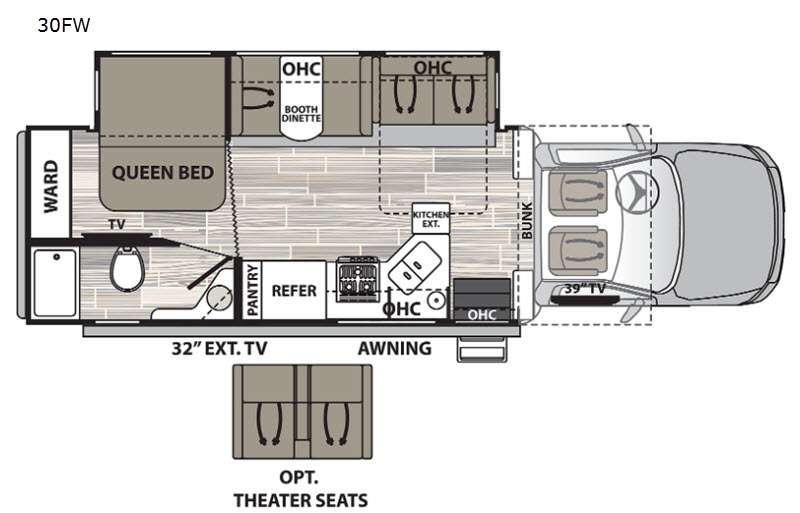

30FW Floorplan
Specifications
| Sleeps | 7 | Slides | 1 |
| Length | 32 ft 1 in | Ext Width | 8 ft |
| Ext Height | 12 ft 4 in | Hitch Weight | 10000 lbs |
| GVWR | 19500 lbs | Fresh Water Capacity | 78 gals |
| Grey Water Capacity | 45 gals | Black Water Capacity | 45 gals |
| Tire Size | 225/70R19.5G | Furnace BTU | 42000 btu |
| Fuel Type | Diesel | Engine | Cummins 6.7L I6 Turbo |
| Chassis | Ram 5500 SLT | Horsepower | 360 hp |
| Fuel Capacity | 52 gals | Wheelbase | 238 in |
| Number Of Bunks | 1 | Available Beds | Queen |
| Torque | 800 ft-lb | Refrigerator Type | Residential Stainless Steel with Ice Maker |
| Refrigerator Size | 16 cu ft | Convection Cooking | Yes |
| Cooktop Burners | 3 | Number of Awnings | 1 |
| Axle Weight Front | 7250 lbs | Axle Weight Rear | 13500 lbs |
| LP Tank Capacity | 20.3 gals | Water Heater Type | Truma Aqua Go Comfort On Demand |
| AC BTU | 30000 btu | TV Info | LR 39" LED Smart TV, BR 32" LED Smart TV, Ext. 32" LED Smart TV |
| Awning Info | 16' Dual-Pitch Armless with LED Lighting | Gross Combined Weight | 37500 lbs |
| Shower Type | Standard | Electrical Service | 50 amp |
| VIN | 3C7WRNDL4KG595826 |
Description
Dynamax Isata 5 Super C diesel motorhome 30FW highlights:
- Semi-Private Bedroom
- Three LED TVs
- Bunk Over Cab
- 16' Awning
- Full-Wall Slide
- USB Charging Ports
You will have your own full bathroom in the rear corner of this coach, and it is equipped with everything you will need to start your mornings off clean and fresh! You will also find plenty of seating and sleeping choices for everyone between the queen-size bed located in the rear bedroom, the bunk over the cab, the sofa, and the Dream Dinette that can be transformed into a sleeping space when you aren't enjoying a meal or playing a card game. There is not only entertainment throughout the interior with the 39" LED Smart TV above the cab and the 32" LED Smart TV in the bedroom, but there is also an exterior wall-mounted entertainment center with a 32" LED Smart TV. And you might decide to venture off-road, choose the factory 4-wheel drive option and start your adventures!
With any Isata 5 Series Super C diesel motorhome by Dynamax, the driver will appreciate the 360 HP from the 6.7L I6 turbo diesel engine, the Cummins Smart exhaust brake system, the RAM ESC suspension and stability package, and the tire pressuring monitoring system, plus the automatic, 4-point hydraulic leveling jacks with Bluetooth and seamless rotocast storage compartments with LED lighting when setting up camp. The premium vinyl flooring throughout, the hardwood shaker-style cabinetry, the hidden hinges, and the Winegard ConnecT 2.0 dome antenna are a few more reasons you will enjoy every time you are in this RV! Choose your favorite Isata 5 today, and start experiencing RV-friendly features and extra touches!
Features
Standard Features (2021)
Chassis
- Ram® 5500 SLT Chassis
- Cummins® 6.7L I6 Turbo Diesel Engine (360hp/800 ft.-lbs. of Torque)
- AISIN® HD 6-Speed Automatic Transmission
- 52-Gallon Fuel Tank
- 9-Gallon Diesel Exhaust Fluid Tank
- Trailer Hitch (10,000 Tow lbs.) with 7-Way Round Tow Connection
- Weigh Safe Trailer Hitch Receiver
- Active Brake Assist
- Adaptive Cruise Control
- Ram® OEM Trailer Brake Control
- Cummins® Smart Exhaust Brake System
- Ram® ESC Suspension and Stability Package
- Momentary Battery Booster Switch for Connecting Chassis and House Batteries
- Tire Pressuring Monitoring System
- Dual 12V Chassis Batteries
- Dual 220-Amp Alternators (440 Total Amps)
- 4-Wheel ABS
- B-20 Bio Diesel Capability
- Ram® 50KSI Chassis Construction
- Engine Block Heater
- Aluminum Running Boards
- Front and Rear Tires: 225/70R19.5G (All Position Front And Rear Traction)
- Single Front Wheels: Aluminum (19.5” x 6.0”) *Outside Rims are Polished
- Dual Rear Wheels: Aluminum (19.5” x 6.0”) *Outside Rims are Polished
- 4.88 Rear Axle Ratio
- Daytime Running Lights
- Leatherette Reclining Driver and Passenger Seats with Armrest
- Power Driver Seat
- Quad-View Camera System (Right Side, Left Side, Hitch, and Rear Horizon Views)
- 12V and USB Accessory Ports
- Temperature/Compass Gauge with Traveler/Mini-Trip Computer
- Cruise Control
- 8.4” Touch Screen Dash Radio with U-Connect®, Hands-Free Voice Command with Bluetooth®, Sirius/XM® Radio-Ready, Media Hub, (SD, USB, AUX), Apple® CarPlay™, Android® Auto™, and Six (6) Speakers
- Adjustable Steering Column
- Power and Heated Exterior Mirrors with Courtesy Lamps and Turn Signals
- Power Windows and Locks
- 3-Point Seat Belts
- Front Safety Airbags
- Drink Holders
Construction
- 2” Aluminum-Framed, Laminated Sidewalls with Block Foam Insulation
- Gel-Coat Fiberglass Walls
- Aluminum-Framed Floor
- Aluminum-Framed Roof Trusses
- Crowned, One-Piece Fiberglass Roof
- Foil-Lined Ductwork Throughout
- Fiberglass Front Cap, and Front Wing Panels
- Fiberglass Rear Bumper
- Automatic, 4-Point Hydraulic Leveling Jacks with Bluetooth
- Dark-Tinted, Frameless Windows
- Seamless Rotocast Storage Compartments with LED Lighting
- Side-Hinged, Locking Aluminum Exterior Storage Doors with Paddle Latches
- Electric Slide System
Exterior
- Custom Full Body Paint Package
- Premium Cut and Buffed Paint Finish
- Front-End Diamond Shield® Paint Protection
- Slideout Toppers
- Dual-Pitch, Armless Patio Awning with LED Lighting and Motion-Activated Retraction
- LED Patio Light
- Power Entry Steps
- Entry Door with Rotary Latch; Dark-Tinted, Frameless Window; and Integrated Shade
- Keyless Entry Touch Pad at Entry Door
- Lighted Acrylic Entry Grab Handle
- Exterior Wall-Mounted Entertainment Center with 32” LED Smart TV (N/A - 28SS)
- Exterior TV Mount (28SS Only)
- Front and Rear LED Clearance and Marker Lighting
- Rear LED Docking Lights
Interior
- Front Cab-Over Bunk Area with Mattress (50” x 80”)
- Premium Vinyl Flooring Throughout
- Deluxe Carpet with Pad in Living Area Slide Room(s)
- Soft-Touch Padded Vinyl Ceiling
- LED Recessed Ceiling Lights
- Sprung, Residential Style Dinette Seats with Lift Up Storage
- Tri-Fold Sofa (30FW, 34DS)
- Coordinating Window Treatments
- Blackout Roller Shades
- Hardwood Shaker-Style Cabinetry
- Full Extension, Soft-Closing Drawer Guides (Where applicable)
- Hidden Hinges
- 39” LED Smart TV (Living Area)
- Sound Bar (Living Area)
- Entry with Non-Skid Rubber Steps and Risers
- Privacy Curtain for Cab-Over Bunk
- Thermal, Reflective Front Privacy Shades
- USB Charging Ports
Kitchen
- Gas Range with Glass Cover
- Convection Microwave Oven
- 16 cu. ft. Residential Refrigerator with Ice Maker (Double-Door and Stainless Steel) (N/A 28SS)
- 9 cu. ft. Refrigerator with Ice Maker (28SS Only)
- Solid Surface Countertops
- Stainless Steel Double-Bowl Sink with Covers
- Residential Stainless Steel Spring Gooseneck Faucet
- Pantry (Floor plan specific)
- Under-Cabinet Lighting
- Kitchen Trash Can
- MaxxAir® Power Vent with Built-In Rain Cover
Bedroom or Bunk Area
- King Bed (70” x 75”) with Gel-Infused Memory Foam Mattress (34DS)
- Queen Bed (60” x 75”) with Gel-Infused Memory Foam Mattress (30FW, 28SS)
- Deluxe Padded Headboard (Floor plan specific)
- Designer Bedding Package
- 32” LED Smart TV
- Cedar-Lined Wardrobe
- LED Reading Lights
- USB Charging Ports
Bathroom
- ABS Shower
- Shower Skylight
- Oxygenics Body Spa® RV Shower Head
- Stainless Steel Sink with Residential Faucet
- Porcelain Electronic-Flush Macerator Toilet (N/A – 30FW)
- Porcelain Foot-Flush Toilet (30FW)
- MaxxAir® Power Vent with Built-In Rain Cover
Utilities
- Battery Disconnect
- Dual 12V Group 27 AGM Deep-Cycle, Maintenance-Free Batteries
- Firefly Multiplex® Wiring with Touch Screen Command Center, Switch Panels, and Bluetooth® Smart Phone App Control
- 50-Amp Service
- 2,800W Pure Sine Wave Inverter/Charger (3,900 Peak Watts)
- 8kW Onan® Diesel Generator with Auto Transfer Switch (Mounted on Isolator Pads)
- Automatic Generator Start
- Dual Ducted, Low-Profile 15,000-BTU Air Conditioners with Heat Pump
- 42,000-BTU LP Furnace with Electronic Ignition
- 60,000-BTU Truma® Aqua Go Comfort™ On-Demand Water Heater (LP)
- 20.3-Gallon LP Tank (WC)
- LP Quick Connect
- Water Filtration System
- Exterior Shower in Service Bay
- Exterior GFCI Receptacle
- Winegard® ConnecT 2.0™ Dome Antenna (WiFi Extender, 4G LTE, Omnidirectional HD OTA, FM, SIM Card Port)
- 4x4 HDMI Matrix
- Cable TV/Satellite Hookup in Service Bay
- Black Tank Flush
- Furnace-Heated Utility Compartment
- Enclosed and Furnace-Heated Holding Tanks
- Upgraded 12V On-Demand Water Pump (4 Gallons per minute)
- Carbon-Monoxide, LP, and Smoke Detectors
- Fire Extinguisher
Options
- Factory 4-Wheel Drive
- Solar Panels - Two 100 Watt with 30 Amp Controller
- Rear “DYNAMAX” Rock Guard
- 2-Stage Front Air Suspension (Self-Leveling)
- 9 cu ft. 2-Way Refrigerator with Ice Maker in place of standard Refrigerator (30FW, 26DS)
- Dual, Power Reclining Theater Seats in place of Dinette (28SS Only)
- Dual, Power Reclining Theater Seats in place of Sofa (30FW, 34DS)
- Winegard® In-Motion T4 Satellite (Dish® SD-HD, DirecTV® SD, BellTV® SD-HD)
- Tri-fold Sofa with Pedestal Table in place of Dinette (28SS Only)
- Innomax Adjustable Comfort, Digital Smart Bed (28SS Only)
- Low-Temp Lithium (200aH) in place of AGM Batteries
- Xplorer Package - includes Dual-Pane, Dark-Tinted Frameless Windows; Insulated Cab Curtain; Four Lithium House Batteries; 800W Solar Package; and Insulated Utility Bay with Secondary Tank Heater and Temperature Sensor (N/A 34DS)
Please see us for a complete list of features and available options.
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
