Floorplan - 2016 Forest River RV Sierra 377FLIK
+1- Sale Price: $19,500
-
Sleeps 6
-
5 Slides
-
Kitchen IslandFront Entertainment
-
42ft Long
-
12,283 lbs

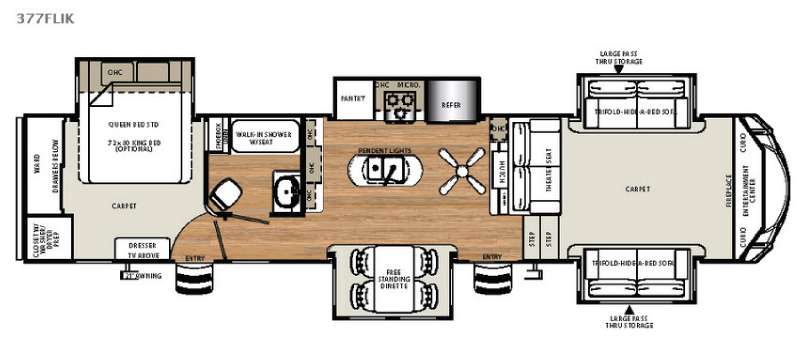

377FLIK Floorplan
Specifications
| Sleeps | 6 | Slides | 5 |
| Length | 41 ft 8 in | Ext Width | 8 ft |
| Ext Height | 13 ft 2 in | Int Height | 7 ft |
| Hitch Weight | 2445 lbs | GVWR | 15500 lbs |
| Dry Weight | 12283 lbs | Cargo Capacity | 3217 lbs |
| Fresh Water Capacity | 60 gals | Grey Water Capacity | 99 gals |
| Black Water Capacity | 33 gals | Tire Size | 16" |
| Furnace BTU | 35000 btu | VIN | 4X4FSEP20GJ042899 |
Description
If you are looking for a fifth wheel with five slides and a large front living area, then you have found it in the Sierra 377FLIK by Forest River.
To the left of the entrance there is a slide with a free-standing dinette. On the opposite side of the kitchen you will find a slide with a pantry, three burner range, microwave, and refrigerator. In the middle of the kitchen there is an island with a double kitchen sink.
As you step up the stairs you will enter into the front living area. There are two slides and each slide has a tri-fold hide-a-bed sofa. Along the front of the living area you are sure to enjoy the large entertainment center and fireplace. Across from the entertainment center there is more seating with the theater seats.
Proceeding toward the rear of the fifth wheel, the bathroom is on the right. Inside the bathroom there is a toilet, linen cabinet which is great storage for towels or toiletries, a walk-in shower with seat, and a sink with medicine cabinet.
The rear bedroom has a slide with a queen bed or you can choose an optional king bed. Across from the bed there is a dresser. Along the rear wall you will find a large wardrobe, and an optional stackable washer and dryer. Next to the dresser there is a private entrance door leading outside, plus so much more!
Features
Exterior
- Color match high gloss gel coated colored exterior fiberglass
- Painted aerodynamic fiberglass front cap with improved turning radius
- Docking station: easy winterization, hot and cold spray port, black Tank flush, pull valves for tanks
- Enclosed and heated dump valves
- Large tinted windows with 80/20 UV prohibitor
- Hickory Springs™ radius triple steps with 9″ riser (no pinched fingers)
- Dometic® “One-Touch” electric awning with LED light strip
- Power front jacks with spring loaded snap pins
- 16″ Radial tires (E-Rated)
- Automotive-style fender skirts
- Hitch light
- Exterior refrigerator (per floorplan)
- Porch light with interior switch
- 30 lb double LP tanks with auto change over
- Roof ladder
- Two (2) exterior speakers
- Rain gutters with extra long drip spouts (prevents black streaking)
- Insulated heavy duty slam lock baggage doors
- Exterior foldable grab handle
- Unobstructed pass-through storage area with cable jacks and 110V outlet
- Two (2) spray ports with 25’ hose (one on each side)
- Upgraded aluminum rims
- 7,000 lb axles
- Friction hinge entry door
Interior
- 84″ interior height with 6′ 4″ slide heights
- Stainless steel appliances
- Beauflor® tile look linoleum
- Real stone backsplash
- Four color coordinated interiors (Carbon, Coffee, Latte, Beachwood)
- Soft close full-extension drawer glides
- Stone cast under mounted kitchen sink
- Washer/dryer prep
- Handmade cabinetry with screwed lumber core stile construction
- LED lighting throughout
- Residential countertops
- Recessed residential lighting
- Colored shower surround with etched tile pattern
- Upgraded adjustable shower head with shelf
- Accent paneling in slideouts
- Accent lighting over dinette
- Walk-in shower with seat (select models)
- Moha accent crown molding over kitchen cabinets
- Extra large picture windows throughout
- Vented side windows in slideouts
- TV antenna with booster
- Solid wood drawer fronts with birch sides
- Upgraded raised panel cabinet doors with designer rails
- Bedroom slideout fascia
- Serta® memory foam mattress
- 40″ flat screen LED HDTV
- Premium soundbar with Sony® DVD player
- Designer window treatment accented per décor
- 9 cu ft stainless refrigerator
- Ceiling fan
- Tri-fold hide-a-bed sofa
- Residential stain resistant carpet
- Center mounted A/C unit for even cooling
- Quilted bedspread and headboard
- Trash receptacle in kitchen
- Teddy Bear® bunk mats
Construction
- Welded aluminum-framed, vacuum bonded laminated superstructure
- Laminated and fully insulated bathroom floor deck
- 2″ x 3″ floor joists 12″ on center
- 5/8″ tongue and groove plywood floor decking
- 3/8″ roof decking (full walk-on roof)
- Cambered powder coated frame with rust prohibitor
- Fully enclosed heated underbelly
- 5″ truss roof rafters
- R-10E sidewall construction
- Laminated sidewalls
- Laminated slideout walls
Appliances/Systems
- Dual zone ducted Dometic® 15 K A/C with quick cool (second A/C prep)
- 9 cu ft refrigerator
- Dual zone thermostat for living room and bedroom A/C
- Floor ducted 35,000 BTU furnace
- Three burner high-output range with 22″ oven
- Interior monitor panel for holding tanks
- Flush floor hydraulic slideouts (per floorplan)
- Satellite and cable hookup with RG-6 cable for high quality picture
- Porcelain foot flush toilets
- 10 gal DSI Water Heater
- 65 amp converter
- Dual battery prep
- EZ Breeze® power fan in bathrooms
- Over the range stainless steel microwave
Safety
- Smoke alarm
- Fire extinguisher
- Breakaway switch (battery hook-up required)
- Dead-bolt lock on entry door
- Liquid propane (LP) / Carbon Monoxide (CO) gas detector
- Fire escape windows
Options
- King bed (N/A 381RBOK, 343RSOK, 387MKOK)
- Solid surface countertops in kitchen
- Free-standing dinette with Four (4) chairs (365SAQB, 371REBH, 372LOK)
- Washer and dryer (per floorplan)
- Sofa in place of bottom bunk (per floorplan)
- Second air conditioner-bedroom
- Fantastic fan with power hood operated with wall switch
- 12V heated holding tanks
- Equaflex® equalizer system
- Electric rear jacks
- Party couch dinette (per floorplan)
- Beauflor® tile look linoleum
- Central vacuum
- R-38E insulation
- 6-Point hydraulic leveling system
- Roto Flex hitch pin
- Tri-fold Hide-A-Bed with hinged bunk overhead (bunk slides)
- Recliners IPO theater seating (where available)
- Party lounge with footrest and hide-a-bed sofa (365SAQB, 371REBH)
- 12" full slide U-Dinette (380BH5 only)
- Quad entry steps
- Slide room awnings (all slides)
- Rear manual awning (360PDEK only)
- Screen room (360PDEK only)
SIERRA Signature Package
- 9 cu ft stainless refrigerator
- Slam lock baggage doors
- Stainless appliance package
- Quiet-cool air conditioner
- Serta® memory foam mattress
- Wire and brace for second A/C (ducted)
- Residential stain resistant carpet
- Residential pull-out kitchen faucet
- Docking station
- 10 gal gas/electric water heater w/DSI
- High-gloss color matched gelcoated fiberglass exterior
- 16″ Spare tire kit
- 40" flat screen LED HDTV
- Aluminum wheels w/7,000 lb axles
- Over the range stainless steel microwave
- Washer/dryer prep
- EZ Breeze® power fan in bathroom(s)
- Water filter system
- Tri-fold hide-a-bed
- Rustic wood Beauflor® flooring
- "One Touch" Dometic® electric awning w/LED light strip
- Aerodynamic two-tone fiberglass painted front cap
- Decorative backsplash
- Soft close residential drawers
- Premium sound bar with Sony® DVD player
- LED interior lighting throughout
Ultimate Package (limited time offer)
- Premium solid surface kitchen countertops
- Wide stance hydraulic landing gear
- 20 cu ft stainless Whirlpool® French door residential refrigerator w/1,000 watt inverter
- Roller shades throughout
- 32" bedroom TV on swing arm
Polar Tech Package
- Thermal pane windows
- Heated holding tanks
- R-38E roof and all floors insulation
- 40K BTU furnace
- Double fiberglass insulation in roof and floor
All features and specifications are subject to change.
