- Floorplan - 2015 Fleetwood RV Discovery 37R
- Sale Price: $125,995
-
Sleeps 4
-
4 Slides
-
39ft Long

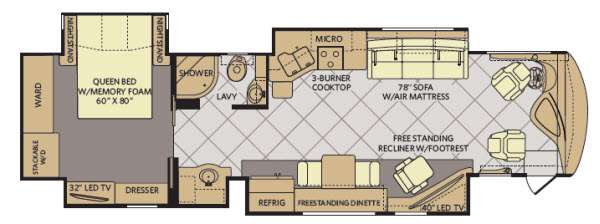

37R Floorplan
Specifications
Sleeps | 4 | Slides | 4 |
Length | 38 ft 8 in | Ext Width | 8 ft 6 in |
Ext Height | 12 ft 10 in | Int Height | 7 ft |
Hitch Weight | 10000 lbs | GVWR | 33400 lbs |
Fresh Water Capacity | 100 gals | Grey Water Capacity | 75 gals |
Black Water Capacity | 50 gals | Furnace BTU | 45000 btu |
Fuel Type | Diesel | Engine | Cummins ISL9 380 HP |
Chassis | Freightliner XCM | VIN | 4UZACGCY2FCGL1716 |
Description
The Discovery 37R motor home by Fleetwood RV offers quad slides which help to make the motor home feel more open and spacious.
Upon entering the 37R, on the passenger side there is a slide with a 40" LED TV, free-standing recliner with footrest, free-standing dinette, and refrigerator. The opposite side has a slide with a sofa with air mattress, three burner range, microwave, and double kitchen sink.
In the bathroom you will find a sink, toilet, and corner shower. Across from the bathroom there is another slide with a sink. The slide continues into the rear bedroom with a dresser and 32" LED TV. Along the rear wall you will find a wardrobe and a stackable washer and dryer. After an enjoyable day outside, you can retreat to the queen bed with memory foam. You will enjoy more room in the rear bedroom since the bed is on a slide.
Features
Standard Features (2015)
Interior - Throughout
- 20,000/25,000 BTU Dual Furnaces (37R, 40G)
- 20,000/30,000 BTU Dual Furnace (40X)
- 25,000/34,000 BTU Dual Furnaces (40E)
- 84" Interior Ceiling Height
- Central Vacuum System
- Complete PEX Plumbing System
- Crown Molding
- Deluxe Roller Bearing, Full Extension Drawer Guides & Transit-Ship Locks
- Demand Water Pump with Filter
- Dual Roof Mounted, High Efficiency A/C with Solar Panel, Chill Grills & Bedroom Heat Pump
- Hardwood Cabinet Doors/Drawers
- Manual Double Roller Shades
- Solid Wood Face Frame Cabinets
- Solid-Surface Entry-Step with LED Accent Lights & Cover
- Stackable Washer & Dryer
- Wall Sconces (Living Area)
- Wall Switches (Includes Switches for Ceiling Lights & Vents)
- Water Heater 16 Gallon Output
- Water Heater Bypass
- Whole Coach Water Filtration System
- Wood-Finish Return Air Intake for Furnace
- 2-12 Volt Power Outlets at Dash
- 110-Volt Power Outlet at Dash
- Adjustable 3 Point Seat Belt at Driver & Front Passenger Seats (with Adjustable Shoulder Straps)
- Automotive Wrap-Around Dash
- Auxiliary Start Circuit
- Battery Disconnect System
- Cruise Control
- Denso High Output Auto A/C Heat Combo
- Driver Left-Console with Lower Storage Bin
- Dual Dash Touch Screen Radio with Built-In GPS Monitors
- Front Power Roller Shades/Blinds
- Manual Driver & Passenger Roller Shades/Blinds
- Passenger Armrest with Easy-Access Battery Disconnect Switch
- Power Passenger Seat Footrest
- Radio Switch Main/Auxiliary Power
- Remote Heated Chrome Power Exterior Mirrors with Turn Signals & Sideview Cameras
- Smart Wheel
- Tilt/Telescoping Steering Wheel
- USB Charger (Driver Side)
- Villa Driver Passenger Soft-Touch Captain's Chairs with Reclining Back & 6-Way Power Controls
Living Room
- Sony 40" LED HDTV (37R, 40G)
- Sony 48" LED HDTV (40E, 40X)
- Sony 5.1 Home Theater System with Built in AM/FM/DVD & Surround Sound Speakers
- TV Antenna
- Villa Residential Seat Styling
- Wall-to-Wall High Gloss Porcelain Flooring
Galley
- 3 Burner, High-Output Cooktop with Sealed Burners
- Adjustable Cabinet Shelves (Select Cabinets)
- Dinette Base Cabinet with Free-Standing Chairs
- Dometic 12.2 cu. ft. 4-Door Refrigerator with Icemaker & Water Dispenser
- Fan-Tastic Power Roof Vent with Wall Switch
- Flip-Up Counter Extension (37R)
- Galley Faucet with Pullout Sprayer
- Solid-Surface Countertop with Sink & Range Covers
- Solid-Surface Dinette Tabletop
- Under-Galley Shelving & Wastebasket
- Window Over Sink (40E, 40G, 40X)
Bedroom
- Bedspread with Decor Pillows
- Coffered Ceiling
- King Dream Easy Memory Foam Mattress (40E, 40G, 40X)
- Plush Wall-to-Wall Carpet with Carpet Pad in Bedroom
- Rear Wardrobe with Cedar Lining, Carpeted Floor & Wire Organizer
- Remote Generator Start Switch
- Slide-Out Features Overhead Cabinets
- Sony 32" LCD HDTV
- Wardrobe Lighting
Bathroom
- A/C Venting
- Cabinet Toe Kicks
- Fan-Tastic Power Roof Vent with Wall Switch
- Glass Shower with Skylight and Low Threshold
- Halogen Lighting Over Sink
- Hardwood Bath Door/Trims
- Make-Up Lights (Select Models)
- Porcelain Toilet with Water Saver
- Porcelain Vacuum Flush Toilet (40E)
- Carbon Monoxide Detector/Alarm
- Central Electrical Panel
- Energy Management System (EMS) with Soft Start
- Fire Extinguisher
- Multiple Seatbelt Locations
- Neutral Loss Protection Standard
- Propane Detector/Alarm
- Smoke Detector/Alarm
Exterior - Throughout
- Fiberglass Front/Rear Caps with High-Mounted Taillights
- 120V/12V AC/DC Converter
- 2000-Watt Pure Sine Wave Inverter with Remote
- 4 Point Automatic Levelers
- 50-Amp Service
- 8.0 KW Onan® Quiet Diesel Generator
- Awning Rail/Drip Molding (Both Sides)
- Doorside Patio Receptacle
-
Dual Pane Windows with Screens
-
Fiberglass Front Quarter Panels
- Fiberglass Wheel Well Trims
- Full-Body Paint
- Heat Pump in 2nd A/C
- Manual Generator Slides
- Molded Fiberglass Roof
- Rear Rockguard
- Water Pump Switch (Multiple Locations)
- Weather Pro Power Awnings (Patio Awnings Includes Wind Sensor)
Automotive
- Aluminum Wheels
- Color Rear & Side Vision Camera System
- Fog Lamps
- Large One-Piece Bonded-in Windshield
- Mud Flaps
- Protective Front Mask
- Remote Keyless Entry
- Underhood Utility Light
- Windshield Wipers with Wet Arm
Safety Conveniences
- 20' Sewer Hose
- ABS Brakes
- Automatic Generator Start System
- Automotive Safety Glass
- Daytime Running Lights
- Easy Sweep Flooring at Entry Step
- Entry Door with Screen Door & Deadbolt Lock
- Four 6V/Deep Cycle House Batteries
- Lighted Entry Assist Handle
- Power Entry Step
- Rear Side Marker Lights
- Remote/Heated Rear-View Mirrors
- Touch Sensor Tank Monitoring System
- Utility Compartment with Exterior Shower
Storage
- Continuous One-Piece Compartment Bulb Seal
- Large Lighted Roto-Molded Polyethylene, Side Swing, Insulated Aluminum Luggage Doors with Single Paddle Latch & Corrosion Resistant Steel Hinges
- Pass Through Storage
Body Structure
- Aluminum Interlocking Floor/Wall/Ceiling Framing
- Heated Water & Holding Tank Compartments
- Molded Fiberglass Roof
- Power Bridge Chassis Construction
- Quiet Cool Ducted A/C
- Vacu-Bonded Upper/Lower Floor, Walls & Ceilings
- CSA Package (Canadian Specs)**
- Satellite Radio (Subscription Required)
- Desk (40G)
- Electric Fireplace (37R)
- Expandable L-Sofa (40X)
- Expandable L-Sofa with Jack-Knife Sleeper (37R)
- Sony 32" LED HDTV in Front Overhead
- U-Shaped Dinette/Dual FS Recliners (40X)
- U-Shaped Dinette/Sofa (37R, 40G, 40X)
- Villa Booth Facing Dinette
Galley
- 22 cu. ft. Residential Refrigerator with Two Additional Batteries & 2800 Watt Inverter
- 3-Burner, High-Output Cooktop with Sealed Burners & Oven
- Dishwasher
- Dresser/Vanity with Second Sink (40G)
- Dual Wardrobe
- King Air Mattress
- King Bed with Memory Foam (37R)
Exterior - Throughout
- 1st Full Bay 36"/54" Slide Trays
- 1st Full Bay 90" Slide Tray
- 2nd Full Bay 36"/54" Slide Trays
- 2nd Full Bay 90" Slide tray
- 3rd Roof A/C (40G, 40X, 40E)
- DSS Auto-Locating In Motion Satellite Dish
- DSS Auto-Locating Stationary Satellite Dish
- Exterior Entertainment Center with Sony 32" LED HDTV and High Output, Splashproof AM/FM/DVD Sound System
- Exterior Pull Out Grill & Kitchenette
- Rear Ladder
- Satellite Dish Winegard Stationary
- Solar Electric Panel
- Window Awning Package
** CSA standards may require substitution or deletion to achieve conformance.
See us for a complete list of features and options!
All standard features and specifications are subject to change.
